Rust is the slow killer of trucks in the Rio Grande Valley, and Brownsville has it worst. Salt air off the Gulf attacks the frame, rocker panels, brake lines, and every exposed fastener long before the body shows it. Undercoating is the cheapest insurance you can buy against it — a few hundred dollars now instead of a frame that is unsafe in ten years.

We apply undercoating, rust proofing, and frame protection built for coastal Texas: the underside, inside the frame rails, wheel wells, rocker panels, and the seams where salt and moisture collect and never dry.

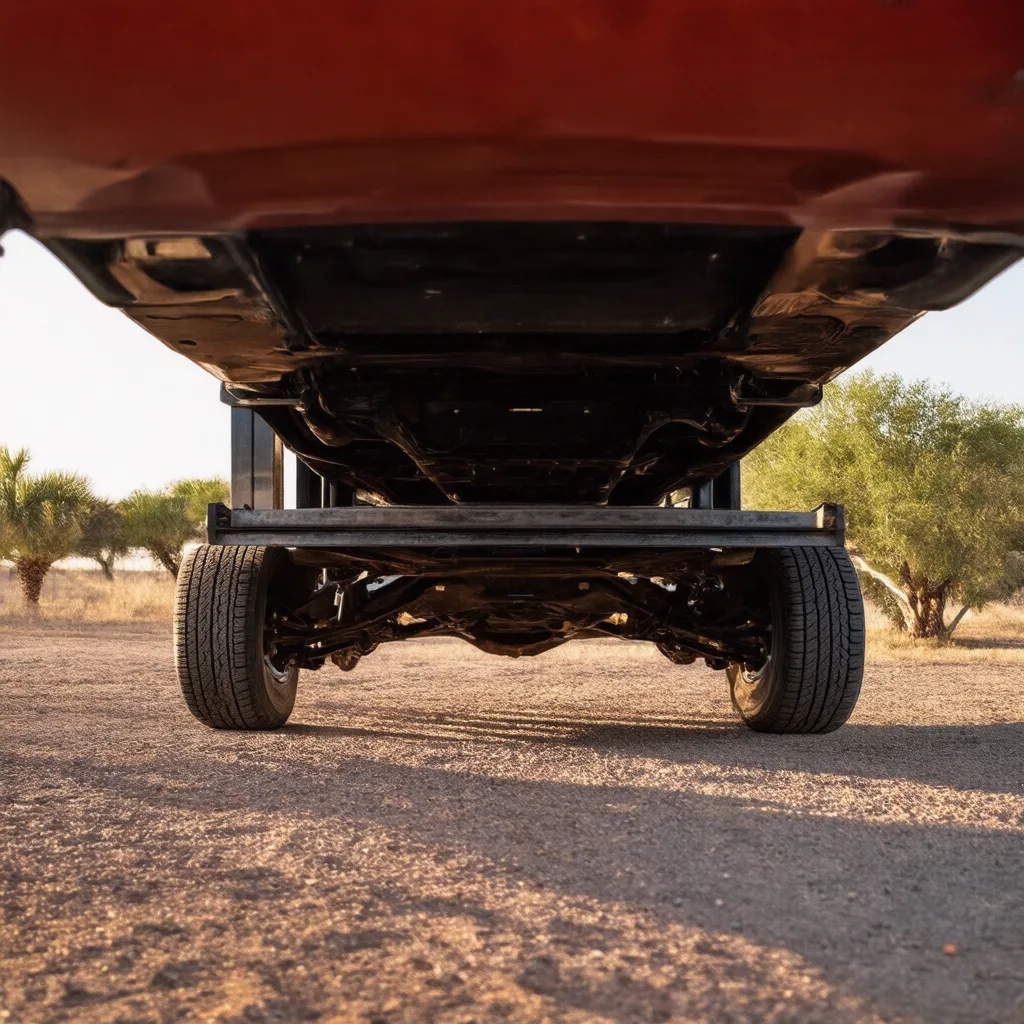

Undercoating & Rust Protection at Texas Tops in the Rio Grande Valley

In detail

Rust starts where water sits and cannot dry. In the Valley that means the inside of the frame rails, the seam where the bed meets the cab, behind the wheel-well liners, and around every bolt that goes through bare steel. Coastal Brownsville accelerates all of it because salt in the air keeps the corrosion process going even when the truck is parked.

The two families of product behave completely differently. Oil-based coatings like Fluid Film stay wet, creep into seams, and displace water, but they wash off over time and need reapplication every year or two. Wax-based coatings like WoolWax set up semi-dry, last longer, and resist washing, which is why they have become the default for coastal trucks. Rubberized and epoxy coatings are hard barriers — excellent over clean metal, dangerous over existing rust because they seal moisture in.

How often you should reapply depends on where you drive and park. A truck that lives in Brownsville near the water and parks outside needs attention every year. An inland truck in a garage can go two or three years between touch-ups. We inspect the frame, seams, and brake lines at every service and tell you honestly when it is time.

Undercoating is not a substitute for fixing existing rust — it is what keeps good metal good. If a frame is already compromised, we tell you that too, because coating a bad frame just hides a safety problem.

Options we install

  • Oil-based coating

    Fluid Film and similar lanolin oils creep into seams and displace water. Best for annual touch-ups and for trucks already showing surface rust.

  • Wax-based coating

    WoolWax and similar wax coatings set up thicker and last longer than oil. The current favorite for coastal trucks that need a durable barrier.

  • Rubberized undercoating

    A thick rubberized spray that deadens sound and blocks stone chips. Good on wheel wells and rocker panels, but it can trap moisture if applied over rust.

  • Epoxy / bed-liner style

    A hard, permanent coating for frames and heavy-use undercarriages. Requires clean, rust-free metal to bond properly.

What the job includes

  • Underside pressure-washed and dried
  • Loose scale wire-brushed and existing surface rust treated
  • Frame rails, seams, wheel wells, and rocker panels coated
  • Brake and fuel lines protected
  • Coating matched to whether your frame is clean or rusting
  • Touch-up schedule and honest condition report

Choose your city

Shop undercoating & rust protection by truck

Fitment

All trucks and SUVs — Ford, Chevy/GMC, RAM, Toyota, Jeep, Nissan, and Honda. Coating choice depends on whether your frame is clean or already rusting, and how often you want to reapply.

What it costs

Entry
$200–$500 (oil or wax coating, single application)
Mid
$500–$1,000 (full undercarriage plus frame rails and seams)
Premium
$1,000–$2,000 (rubberized or epoxy system, wheel wells, rockers, touch-up schedule)

Installation

Prep is everything. We pressure-wash and dry the underside, wire-brush loose scale, and treat existing surface rust before any coating goes on. Oil and wax coatings are a same-day job. Rubberized and epoxy systems need a full day and a cure before you drive on wet roads.

How it compares

A rubberized spray is the cheapest one-time option, but if there is already rust underneath it can trap moisture and make things worse. Oil and wax coatings are the opposite — they creep into seams and displace water, and they are the right answer for a truck that already has surface rust. If you are keeping the truck for years, a wax or epoxy system with an annual touch-up is the best value.

Common mistakes

  • Rubberized coating over existing rust

    It seals moisture in and the rust spreads underneath where you cannot see it. Clean metal only, or use an oil or wax coating instead.

  • Skipping the prep wash

    Coating over dirt, salt, or grease means it never bonds. The wash and dry is most of the job.

  • Coating a compromised frame

    Undercoating protects good metal. It does not make a rusted-through frame safe, and hiding it is dangerous.

  • One-and-done thinking on the coast

    Near the water, oil and wax coatings need an annual touch-up or they wash away and leave you exposed.

Frequently asked questions

How much does it cost to undercoat a truck?

An oil or wax coating runs about $200–$500 for a single application. A full undercarriage with frame rails and seams is $500–$1,000, and a rubberized or epoxy system with wheel wells and a touch-up schedule is $1,000–$2,000.

What is the difference between undercoating and rust proofing?

People use the terms interchangeably. Undercoating is the coating applied to the underside; rust proofing is the goal. In practice, oil and wax coatings creep into seams and protect better than a hard rubberized spray, especially on a truck that already has surface rust.

How often should I reapply undercoating?

Near the coast in Brownsville, oil and wax coatings should be touched up every year. Inland and garaged trucks can go two to three years. We inspect and tell you when it is due.

Can you undercoat a truck that already has rust?

Yes, but the approach changes. We treat the surface rust first and use an oil or wax coating that displaces moisture, rather than a hard rubberized spray that would trap it. If the frame is badly compromised we will tell you that too.

Is undercoating worth it in the Rio Grande Valley?

For anyone keeping a truck long term, yes — especially near the coast. A few hundred dollars of protection is far cheaper than frame, brake-line, or rocker-panel repair, and it protects your resale value.

Does undercoating void my warranty?

No. Undercoating is a protective coating, not a modification. We do check and note existing conditions so there are no surprises later.

Let's talk about your truck

Undercoating and rust protection applied in the Rio Grande Valley for 37 years. Built for coastal salt, humidity, and trucks that are kept.
